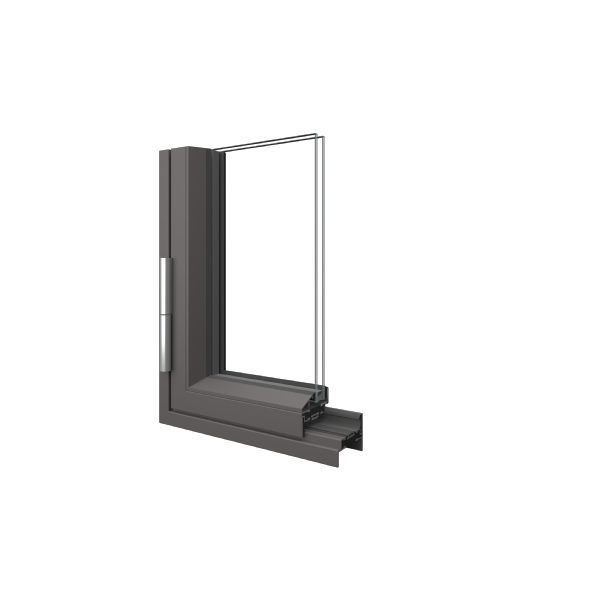

SLIM 65 Inward Opening Minimalist Doors

SLIM 65 Inward Opening Minimalist Doors - SL004

Sample Title

Sample Text

    Ref: SL004

    SLIM 65 Inward Opening Minimalist Doors are designed to transform ordinary indoor spaces into open, ultra-modern spaces with expansive views. Our ultra-slim inward opening steel door system is engineered for architects and developers seeking maximum transparency, refined aesthetics, and reliable thermal performance. Designed for luxury residential, hospitality, and commercial interiors, this minimalist steel door combines clean sightlines, structural strength, and modern performance standards. With precision-engineered steel profiles and a fully thermally broken system, this door delivers elegant design without compromising durability or comfort.
    Get the best price

    Materials / Surface Treatments:
    • Standard profile length: 6000 mm
    • Galvanized steel, copper-plated brushed finish
    • PVDF coating (coating temperature: 80 120°C)
    • Stainless steel (minimum order quantity for SLIM65 profiles: 3000 meters)

    Combination Types:
    • Minimalist single door, minimalist double door, fixed + opening combination
    • Optional: Glass decorative strips (flat or pointed decorative strip series), door bottom steel plate (coated in the same color as the profile)
    Door Configurations:
    • Single inward opening steel door
    • Double inward opening steel door
    • Fixed glass + opening door combinations
    • Optional decorative glass strips
    • Flush treshold or steel bottom plate options
    All configurations can be customized to project requirements.

    Hardware Accessories:
    • Welded hinges (3 per door)
    • Multi-point locking system: Custom lock box, multi-point lock body, and handle
    • Single-point locking system: Lock box, single-point lock body, and handle
    • Handle style: Modern minimalist

    Technical Features:
    • Flush frame and sash design
    • Three-chamber structure for better thermal insulation
    • SLIM65 profile U-value (Kf): 1.6 W/(m²·K)
    • Profile width: 65 mm
    • Profile wall thickness: 1.5 mm
    • Maximum groove size: C-groove compatible with European standard hardware
    • SLIM65 profile system structure: Cold-rolled steel profile, thermal break (PA66), and CPUR (cast polyurethane rubber)
    • Nylon blocks embedded in the door frame cavity for connection to building openings (including sub-frames) and curtain wall profiles

    Section Details:
    • SLIM65 Swing Door System:
    • Standard single door size: 900 mm (width) × 2400 mm (height)
    • Maximum single door size: 1100 mm (width) × 3000 mm (height)
    • Standard double door size: 1800 mm (width) × 2400 mm (height)
    • Maximum single door weight: 150 kg
    • Curved frame section: Minimum diameter for inward-opening single door: 1000 mm
