The Slim 65 ultra-narrow doors and windows are designed to transform ordinary indoor spaces into ultra-modern spaces with expansive views. This elegant product line features unique, clean lines, adding a touch of sophistication to high-end villas, clubs, and residential buildings.
Materials: Galvanized steel, brushed copper plating; PVDF coating (spraying temperature 80-120℃); stainless steel (minimum order quantity for SLIM65 profiles: 3000 meters).
Combination Types:
Fixed windows (can be curved); inward/outward opening windows (can be curved); top-hung windows.
Inward opening window hardware:
Hinges: Standard hinges use screw-connected hinges (2 per sash). For oversized or overweight sashes, 3 screw-connected hinges or 10MM diameter welded hinges (2 pieces) can be selected.
Multi-point locking system: Equipped with vintage-style fork handles and hidden opening limiters.
Top-hung window hardware: Hinges can be folding hinges, screw-connected hinges, or welded hinges. Other accessories are the same as those for opening windows.
Technical Features:
Flush frame and sash design; three-chamber structure for better thermal insulation.
SLIM65 profile K(f) value: 1.6W/(㎡・K).
Profile width: 65mm; wall thickness: 1.5mm.
Maximum groove size: C groove compatible with European standard hardware.
SLIM65 profile system structure: Composed of cold-rolled steel profiles, thermal break strips (PA66), and CPUR (cast polyurethane rubber).
Section Details:

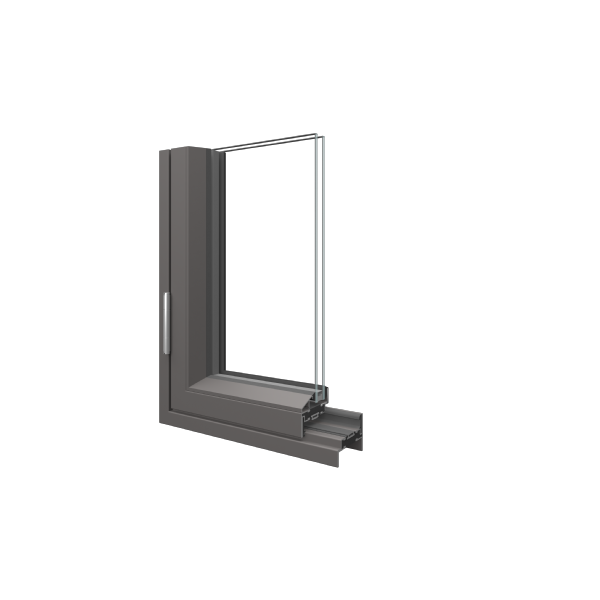

SLIM65 steel inward-opening window system:
Standard size: 650mm (width) × 1200mm (height).
Minimum size: 450mm (width) × 450mm (height).
Maximum size: 900mm (width) × 1800mm (height).
Maximum weight per sash: 120kg.
Curved frame section: Minimum diameter for inward-opening doors and windows: 1000MM.
