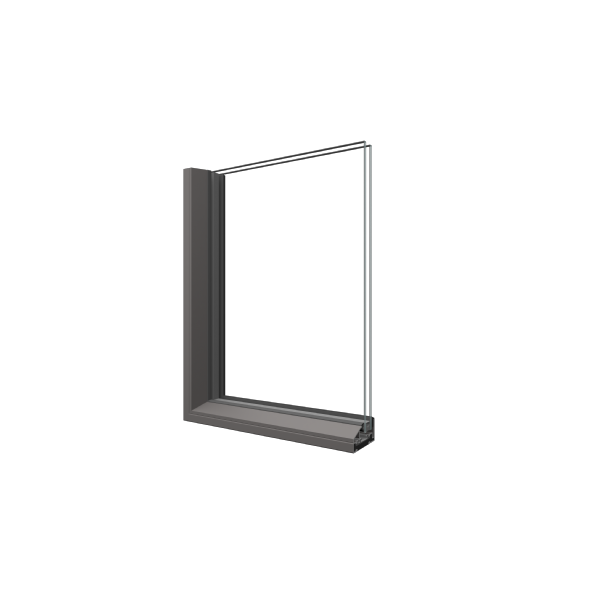

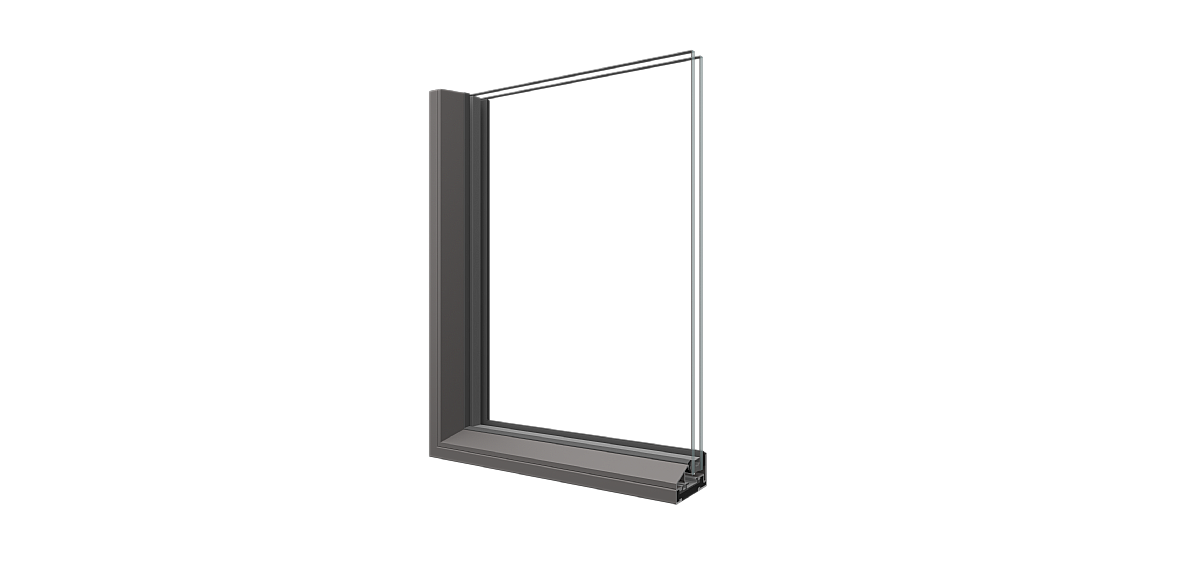

SLIM65 Fixed Window

SLIM65 Fixed Window - SL008

Sample Title

Sample Text

    Ref: SL008

    The Slim 65 ultra-narrow doors and windows are designed to transform ordinary indoor spaces into ultra-modern spaces with expansive views. This elegant product line features unique, clean lines, adding a touch of sophistication to high-end villas, clubs, and residential buildings.


    Get the best price

    Materials / Surface Treatment:
    • Standard profile length: 6000MM.
    • Materials: Galvanized steel, brushed copper plating; PVDF coating (spraying temperature 80-120℃); stainless steel (minimum order quantity for SLIM65 profiles: 3000 meters).

    Combination Types:
    • Fixed windows (can be curved).

    Hardware Accessories:
    • No relevant description.

    Technical Features:
    • Three-chamber structure design for better thermal insulation.
    • SLIM65 profile K(f) value: 1.6W/(㎡・K).
    • Profile width: 65mm; wall thickness: 1.5mm.
    • SLIM65 profile system structure: Composed of cold-rolled steel profiles, thermal break strips (PA66), and CPUR (cast polyurethane rubber).

    Section Details:
    SLIM65 steel fixed window system:
    • Maximum single glazing size: 1200mm (width) × 3000mm (height).
    • Maximum weight per sash: 140kg.
    Curved frame section: Minimum diameter for fixed windows: 600MM.
