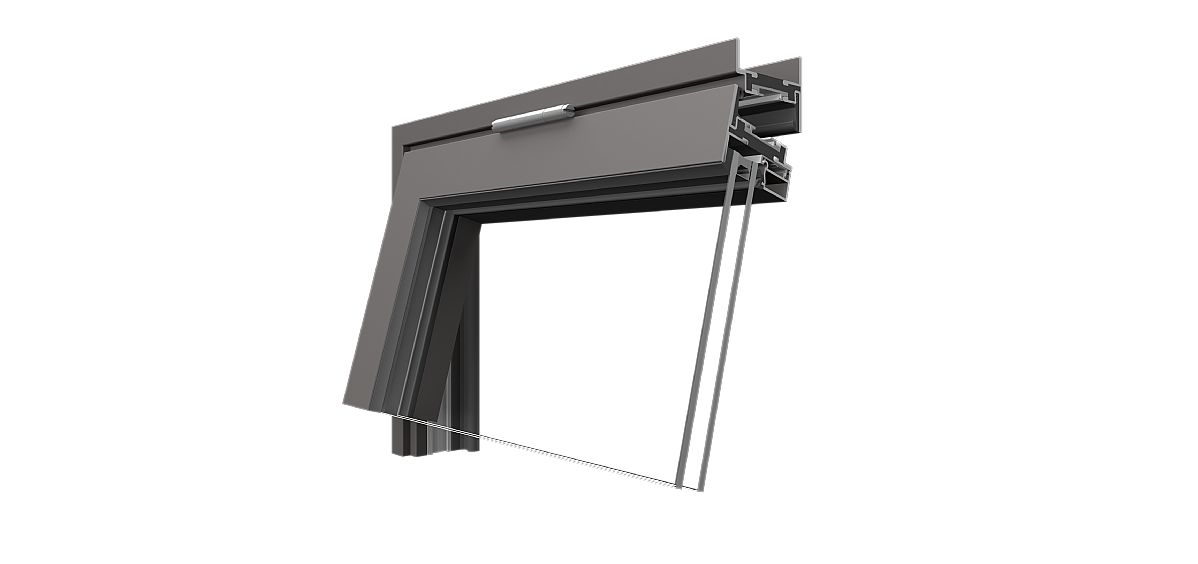

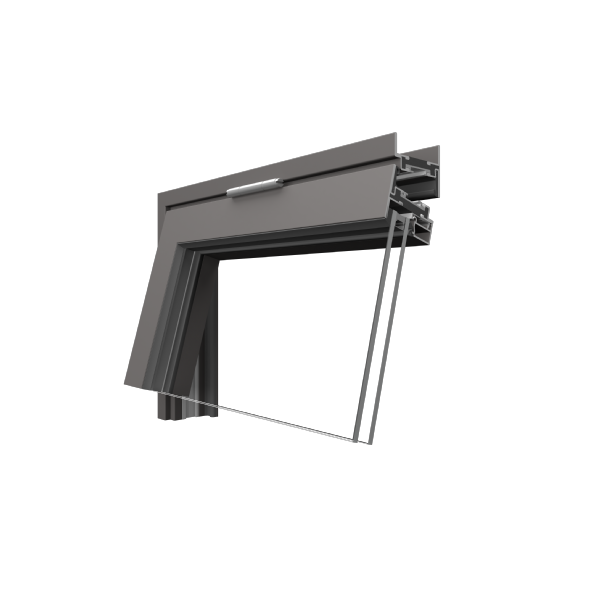

SLIM65 Exterior-hung windows

SLIM65 Exterior-hung windows - SL009

Sample Title

Sample Text

    Ref: SL009

    The Slim 65 ultra-narrow doors and windows are designed to transform ordinary indoor spaces into ultra-modern spaces with expansive views. This elegant product line features unique, clean lines, adding a touch of sophistication to high-end villas, clubs, and residential buildings.


    Get the best price

    Materials / Surface Treatment:
    • Standard profile length: 6000MM.
    • Materials: Galvanized steel, brushed copper plating; PVDF coating (spraying temperature 80-120℃); stainless steel (minimum order quantity for SLIM65 profiles: 3000 meters).

    Combination Types:
    • Single top-hung window; fixed sash + top-hung window.

    Hardware Accessories:
    Top-hung window hardware:
    •   Hinges: Folding hinges, screw-connected hinges, or welded hinges can be selected, with built-in multi-position support rods.
    •   Multi-point locking system: Equipped with vintage-style fork handles.
    •   Single-point locking system: Equipped with vintage external handles + external lock bases.

    Technical Features:
    • Flush frame and sash design; three-chamber structure for better thermal insulation.
    • SLIM65 profile K(f) value: 1.6W/(㎡・K).
    • Profile width: 65mm; wall thickness: 1.5mm.
    • Maximum groove size: C groove compatible with European standard hardware.
    • SLIM65 profile system structure: Composed of cold-rolled steel profiles, thermal break strips (PA66), and CPUR (cast polyurethane rubber).

    Section Details:
    SLIM65 steel top-hung window system:
    •   Standard size: 650mm (width) × 1200mm (height).
    •   Minimum size: 450mm (width) × 450mm (height).
    •   Maximum window size or weight: According to the maximum support weight of friction hinges (130KG).
