Stacked curtain wall

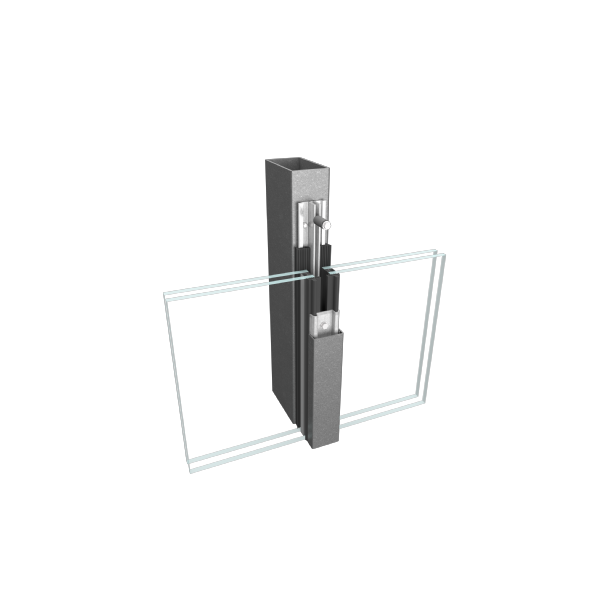

Stacked curtain wall - 40001

Sample Title

Sample Text

    Ref: 40001

    M40 profile is cold-rolled formed steel profiles developed and produced by PDA company, that can be connected vertically or horizontally of profiles. Through the M40 steel profiles connection, the back prop can use square steel, I-beam steel, wood, cement wall and other different materials.
    Get the best price

    Material / surface finish

    • Galvanized steel
    • Fluorocarbon coating or powder coating
    Technical features
    • The M40 profile wall thickness is 1.5mm
    • The fire steel curtain wall system that is made of M40 profiles can meet E60min
    • The view of the profiles widtih is 40mm, and the depth is adjustable.
    • Wall thickness≥100mm, adjustable.
    • M40 system only can fit Single-glass
    • The suitable glass of M40 system is single-fire glass, laminated glass or Hollow fireproof glass
    • The suitable glass (fireproof) thickness of the M40 system is≥10mm.
    • Height (full height) can meet 5000-6000mm，width can meet 1000-1500mm
    • Corner treatment of M40 system is bending steel plate.

    Downloads

    2024-Steel curtain wall profile system
