    Ref: 50002

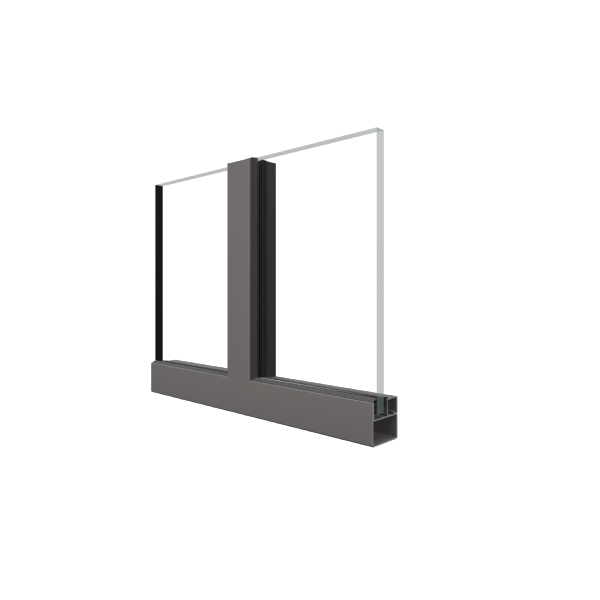

    The 50 series steel profiles are made from 1.5mm high-quality galvanized steel plates, cold-formed into closed-cavity profiles. The profile design is simple and practical, offering a narrower visible frame compared to competing products. The non-thermally insulated fire-rated system, composed of cold-formed steel profiles, Class E fire-rated glass, and flame-retardant sealing strips, is suitable for doors and partition walls in building internal fire compartments.

    The 50 all-steel series is a functional, reliable, and cost-effective product line known for its narrow frames. It offers fire-rated performance and is designed for non-thermally insulated steel interior doors and partitions.
    Get the best price

    Materials / Surface Treatment:
    • 1.5mm wall thickness cold-formed galvanized steel; standard painting or PVDF coating; standard steel glass glazing beads (1.2mm) or custom glass glazing beads (1.2mm).

    Combination Types:
    • Indoor single-door, indoor double-door, indoor partition, or a combination of opening sash + fixed sash.

    Hardware Accessories:
    • Steel 2D welded hinge installation.
    • Standard narrow lock body and handle, optional surface-mounted or concealed door closers, central control bolts.

    Technical Features:
    • Can be connected to solid walls, lightweight wall structures, or partition walls.
    • Glass: Opening structures and fixed frame structures use 5-24mm glass.
    • Combined with Class E fire-rated glass and flame-retardant sealing strips to form a non-thermally insulated fire-rated partition system.

    Section Details:
    • Opening sash frame size range: 1100mm (width) × 2100-3000mm (height).
    • Fixed sash frame size range: 1200mm (width) × 2800-3200mm (height).
